Temperature Controller for Thermostatic Valves

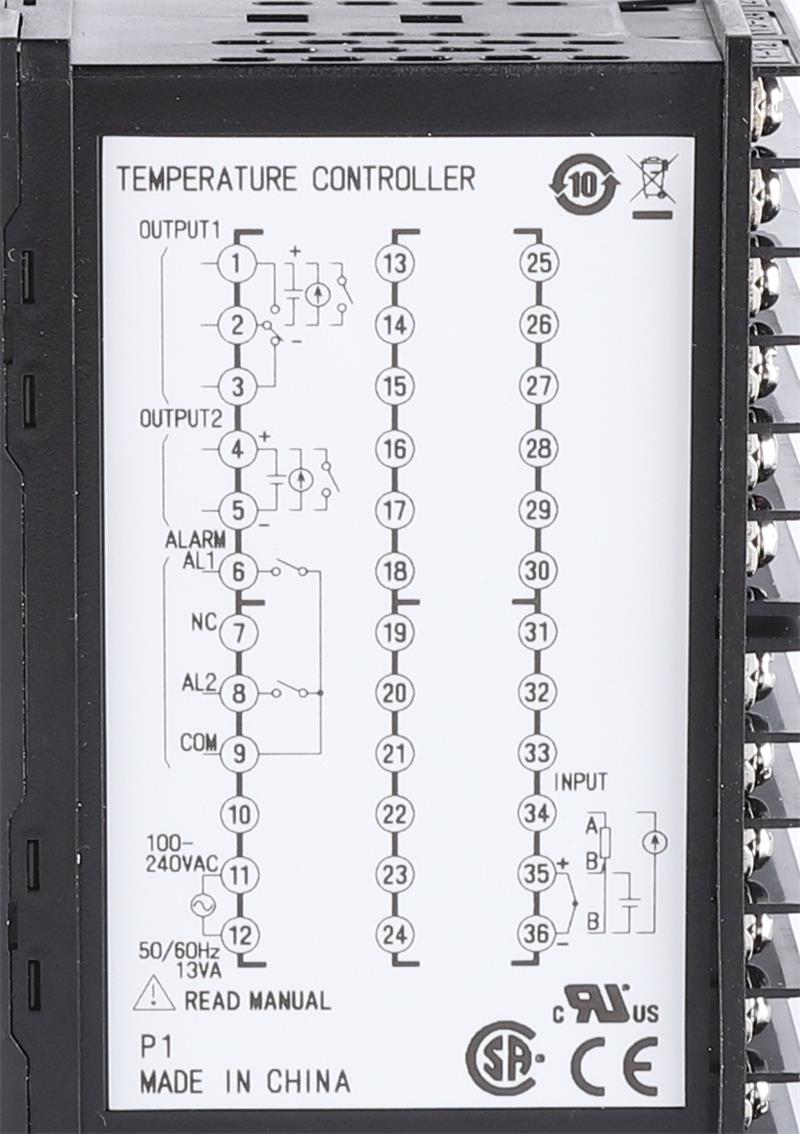

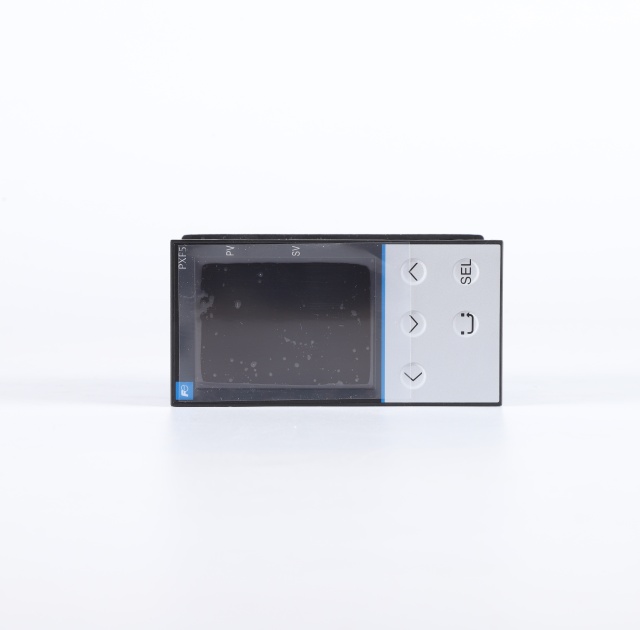

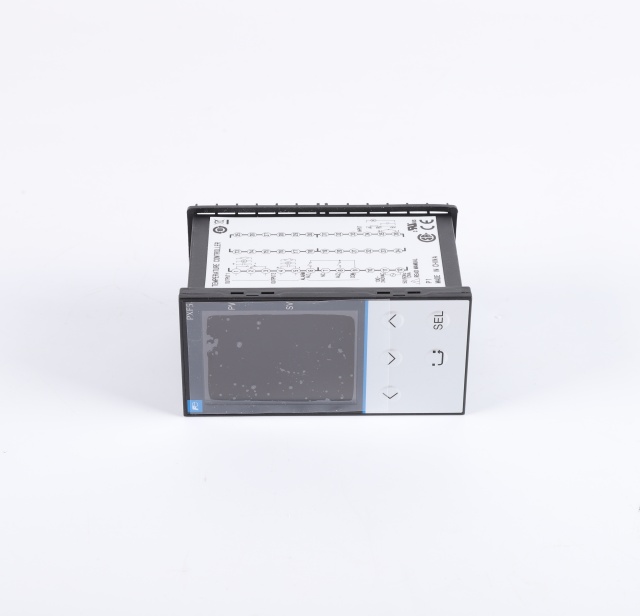

No.PXF5ACY-1W100
Temperature controller also known as temperature control switch, temperature protector, temperature controller, is a series of automatic control elements that physically deform inside the switch according to the temperature change of the working environment, resulting in on-off or off-action. Its working principle is mainly through the temperature sensor for automatic sampling and real-time monitoring of the ambient temperature, when the ambient temperature is higher than the control set value, the control circuit starts, you can set the control return difference.
  • Temperature Controller for Thermostatic Valves
  • Temperature Controller for Thermostatic Valves
  • Temperature Controller for Thermostatic Valves
  • Temperature Controller for Thermostatic Valves
  • Temperature Controller for Thermostatic Valves
  • Temperature Controller for Thermostatic Valves

Description

Specification
Power supply voltage 100(-15%) to 240(+10%) V  AC, 50/60Hz, 24 (±10%)V  DC/AC, 50/60Hz
Power consumpion 13 VA MAX (100 to 240 V AC), 8 VA MAX (24 V DC/AC)
Control output Relay contact output
1 SPST contact, 250 V AC/30 V DC, 3 A (resistive load)
1 SPDT contact, 250 V AC/30 V DC, 5 A (resistive load)
SSR/SSC drive output (voltage pulse output)
ON voltage: 12 V DC (10.7 to 13.2 V DC)
OFF vollage: 0.5 V DC or lower
Maximum current: 20 mA DC
Load resistance: 600 Ω MIN.
Current output
0 to 20 mA DC/4 to 20 mA DC
Accuracy: ±5%FS
Load resistance: 500 Ω MAX
Voltage output
0 to 5 V DC/1 to 5 V DC/0 to 10 V DC/2 to 10 V DC
Accuracy: ±5%FS
Load resistance: 10 kΩ MIN
Process value input Accuracy
Thermocouple input:either ±1°C ±1 digit or +0.3% of indicated value ±1digit, whichever is larger

except: Thermocouple B: 0°C to 400°C: no accuracy assurance
            Thermocouple R: 0°C to 500°C: ±3°C ±1 digit
            Other thermocouples: -200°C to -100°C: ±2 °C ±1 digit

RTD input:  ±0.8°C  ±1 digit or  ±0.2% of indicated value ±1 digit, whichever is larger

mV input, voltage input, current input: ±0.3%FS ±1 digit
Alarm output Relay contact output (AL1 to AL5)
1 SPST contact, 250 V AC/30 V DC, 1 A (resistive load)
Digital input Number of inputs: 3
Contact capacity: 5 V DC, 2 mA (per point)
Input pulse width: 50 ms MIN.
ON judgment: 2 V DC or lower
OFF judgment: 3 V DC or higher
Transfer output 0 to 20 mA DC/4 to 20 mA DC
0 to 5 V DC/1 to 5 V DC/ 0 to 10 V DC/2 to 10 V DC)

Transfer data: PV, SV, DV, MV

Accuracy: ±0.2%FS (±5%FS current output for 1 mA or lower)

Load resistance: 500 Ω MAX.(current). 10 kΩ MIN. (voltage)
Remote SV input 0 to 5 V DC/1 to 5 V DC/0 to 10 V DC/2 to 10 V DC

0 to 20 mA DC/4 to 20 mA DC (an extemal resistance of 250 Ω is required for current input)
Current transformer (CT) input Single phase current transformer: 1 point, for 1 to 30 A/20 to 100 A
Valve feedback signal(potentiometer) input Resistance range: 100 to 2.5kΩ (three line type)
Resolution: 0.5% FS
Input accuracy: ±1.0% FS
Corresponding full stroke time: 30 sec to 180 sec
Valve position feedback input(Potentiometer) SPST contact x 2 [without interlock circuit], 250 V AC/30 V DC, 3 A (resistive load)
Communication RS-485 interface
Communication method: Half-duplex bit serial, asynchronous communicaton
Transmission rate: 9600 bps,19200 bps, 38400 bps. 115400 bps
Protocol: Modbus RTU compatible
Transmission distance: Up to 500 m (total connection length)
Connectable units: 31 units MAX.
Loader interface TTL Level
Connection method: dedicated cable
Communication method: Half-duplex bit seral, asynchronous communication
Transmission rate: 38400 bps, no parity
Protocol: Modbus RTU compatible
Storage temperature and humidity -20°C to 60°C,90%RH or less (no condensation)
Operating temperature and humidity -10°C to 50°C,90%RH or less (no condensation)
Altitude up to 2000 m
Reeommemd fuse 250V AC,0.1A T (Time-Lag) for 100 to 240V AC Power supply.
400V DC/400V AC, 1A T (Time-Lag) for 24V DC/24V AC Power supply
Service life 10 years (under an average ambient temperature of 25°C)
The life is shortened by half when the temperature rises by 10°C (Arrhenius'law). lf you use the controller inside a cabinet or the like, please note that the amblent temperature can rise.

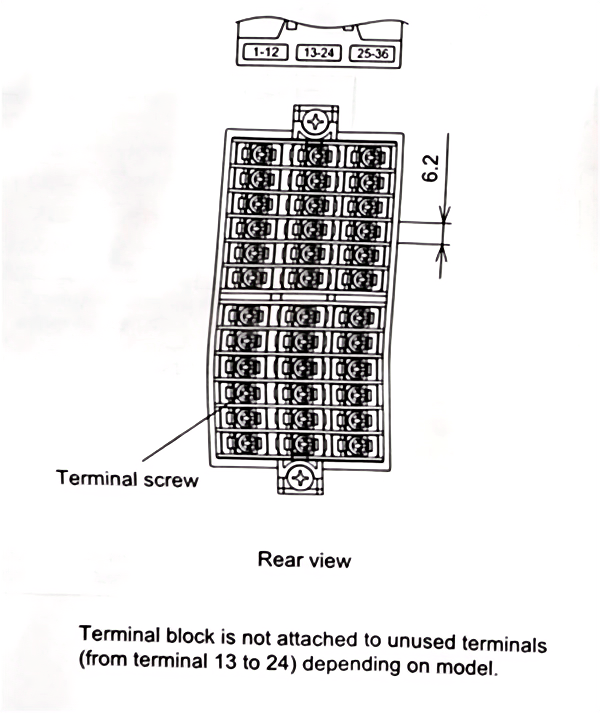

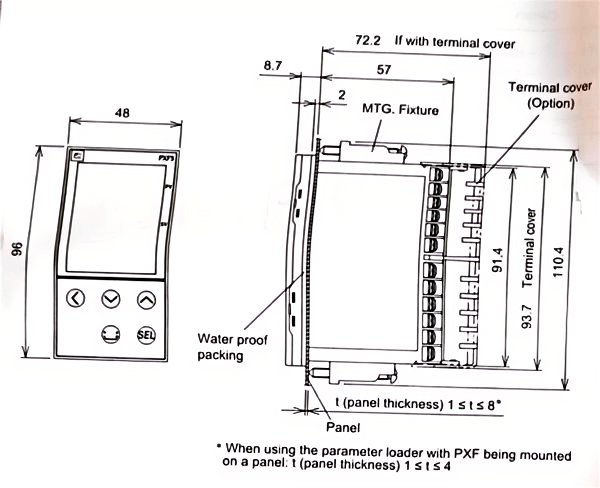

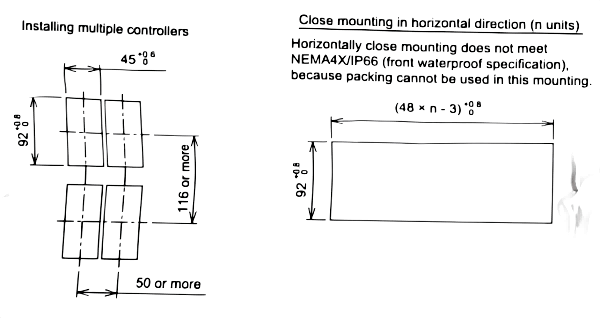

External/Panel Cut Dimensions
PXF5
Unit: mm




Panel Names and Functions

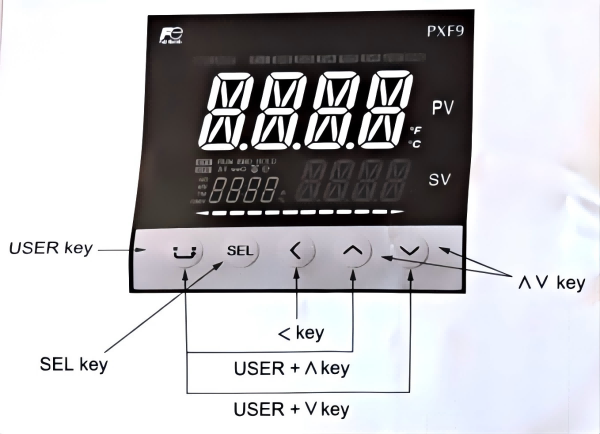

USER Key
Press this key once in PV/SV display to switch between SV display and MV display.Press and hold this key in PV/SV display to start the assigned function.Press this key once in operation control mode,channel-selection mode,or setup mode to return to PV/SV  display.
SEL key
Press this key once in operation mode to move to operation control mode.
Press and hold this key in operation mode to move to channel selection mode.
Press this key once in channel selection mode to move to setup mode.
Press and hold this key in setup mode to move to channel selection mode.
Press this key once in parameter selection submode of setup mode to enter parameter editing submode.
Press this key once in parameter editing submode to save the change and return to parameter selection submode.
< key
Use this key to select the digit when changing values.
ΛV keys

Use this key to change SV value when in PV/SV screen.
Press this key in operation control mode,channel selection mode,or setup mode.to change parameters to be displayed.
Use this key to edit parameter when in parameter setting submode.
USER+Λ key
Press and hold this key in PV/SV display to start the assigned function.
(The factory set function for this keyis switching between RUN and standby.)
USER+V key
Press and hold this key in PV/SV display to start the assigned function.
(The factory set function for this key is switching between start/stop of auto-tuning.)

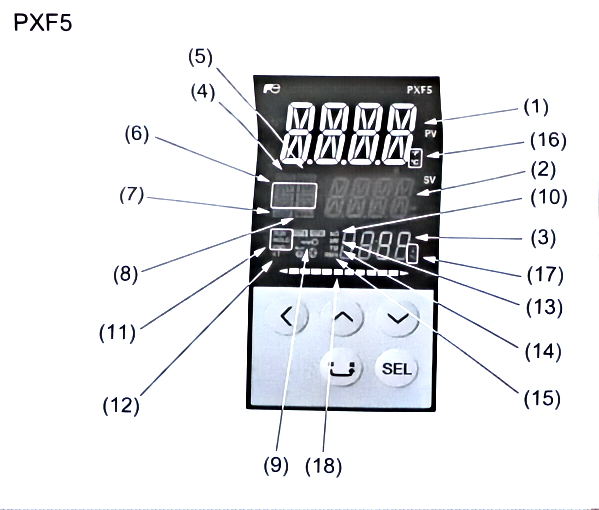

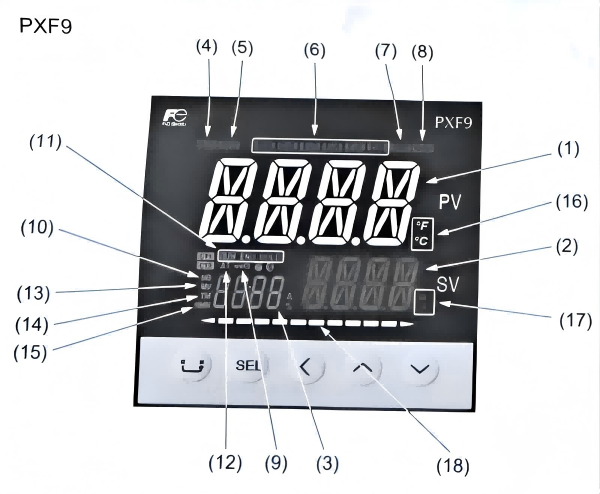

(1) Process value (PV)
Indicates process value.Shows parameter name when in parameter setting.
(2) Set point (SV)
Shows set point.Shows parameter set value when in parameter setting.
(3) Screen No
Shows screen No.when in parameter setting.
(4) OUT 1 indicator
Lights during control output 1 is ON.
(5) OUT 2 indicator
Lights during control output 2 is ON.
(6) EV 1,EV 2,EV 3 indicators

Lights during digital output 1 to 3 are ON.
(7) STBY indicator
Lights during standby.
(8) MANU indicator
Lights during manual mode.
(9) Lock indicator
Lights during key lock.
(10) No.indicator
Lights durng indicating screen No.
(11) RUN/HOLD/END indicators
Lights during ramp/soak operation.
(12) AT indicator
Lights during auto tuning.
(13) MV indicator
Lights during MV is indicated on SV display.
(14) TM indicator
Lights during the time is indicated on SV display.
(15) RMN indicator
Lights during remaining time is indicated on SV display.
(16) ℃/ indicator
Shows the temperature unitunderuse.
(17) %,kW/h indicator
Shows the unit being applied to values on SV screen during the operation mode.
(18) Bar graph display
Displays a bar graph of control output(MV)during operation.

Basic Operations

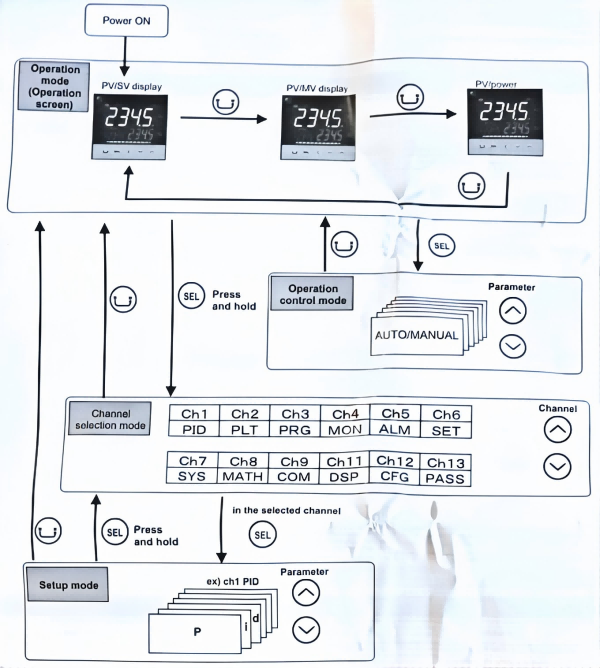

The below figure illustrates the mode transition and the key operations


Operation mode
In this mode the normal operation is performed. The process value (PV) and the set value (SV) are displayed. The device starts in this mode when you turn on the power. You can change the set value (SV) in this mode. You can check the output value (MV) and the amount of electric ower by switch in the screen.
Operation control mode
In this mode you can put the device to standby or change the alarm set value.
Setup mode
In this mode you can setup each parameter. This mode includes the parameter selection submode and the parameter editing submode, which can be switched by SEL key. In the parameter selection submode, you can switch between parameters by using  ΛV keys. In the parameter editing submode, you can change parameter
values by using ΛV keys.

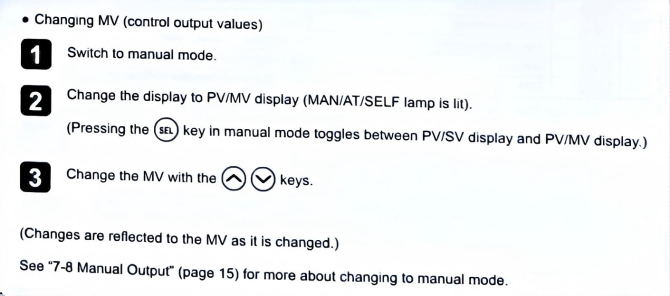

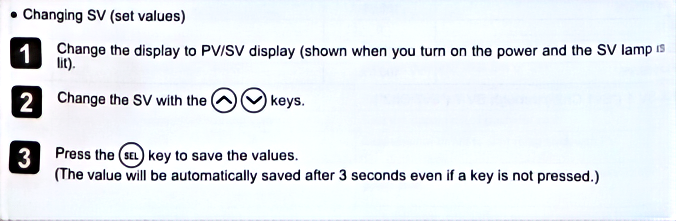

Changing Values on Operation Screen
