Product Name
|

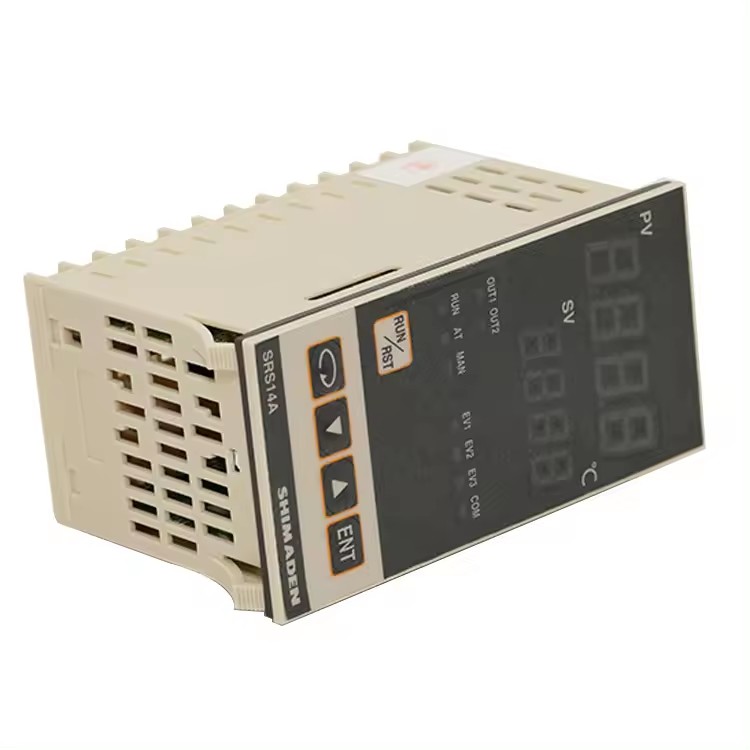

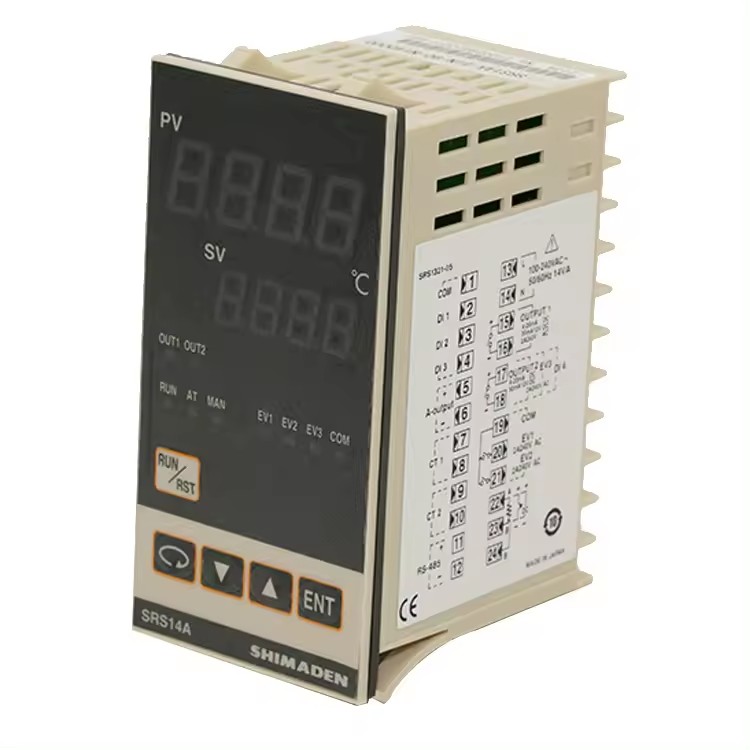

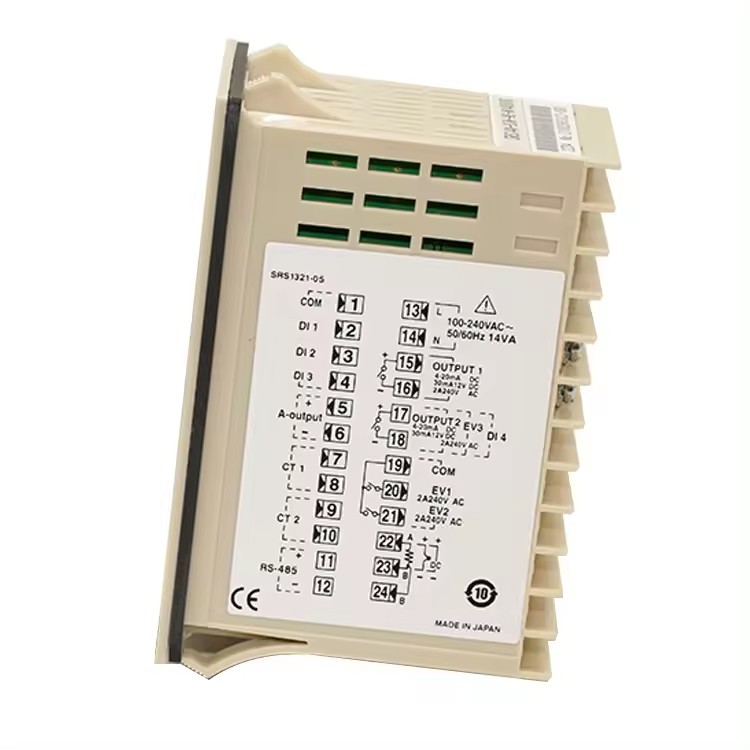

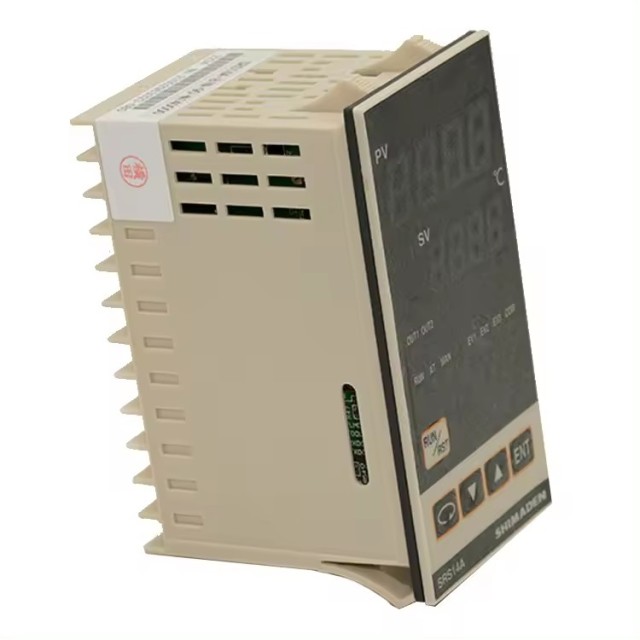

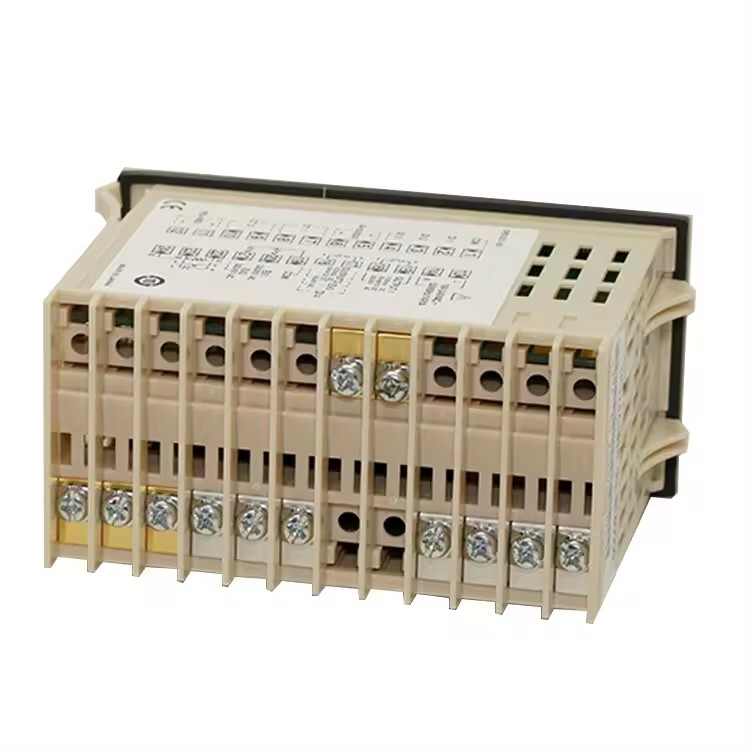

Temperature Controller
|
|
Model
|
SRS14A-8IN-90-N140000
|
|
Material
|
Hardware, Plastic
|
|
Panel Size
|
4.5*9.2cm
|
|
Dimensions Size
|
4.8*9.6*6.8cm
|
|
Input Type Measurement Range
|
Thermocouple: B,R,S,K,E,J,T,N,PLII,WRe5-26, U,L;
Platinum resistor: Pt100/JPt100; Voltage(mV): -10~10, 0~10, 0~20, 0~50, 10~50, 0~100mV DC |
|
Control Output
|
Current 4~20mA DC, load impedance: 600Ω Max
|
|
Power Supply
|
100~240V AC±10%, 50/60Hz
|
|
Control Mode
|
PID Manual or automatic adjustment control
|
|
Temperature Range
|
Default 0-800°C range can be adjusted according to the sensor
|
|
Protection Rating
|
IP66
|
|
Application
|
Widely used in all kinds of heating furnace, oven, industrial boiler, machinery and equipment, furnace, container, liquid, gas, solid, pressure, petrochemical, metal heat treatment, glass tempering furnace, industrial furnace, food packaging, lithium battery processing industry,tempered glass processing industry, solar energy industry ceramic processing industry, automobile manufacturing industry, aluminum processing industry, pharmaceutical equipment temperature control .
|
|
Customized
|
yes
|
