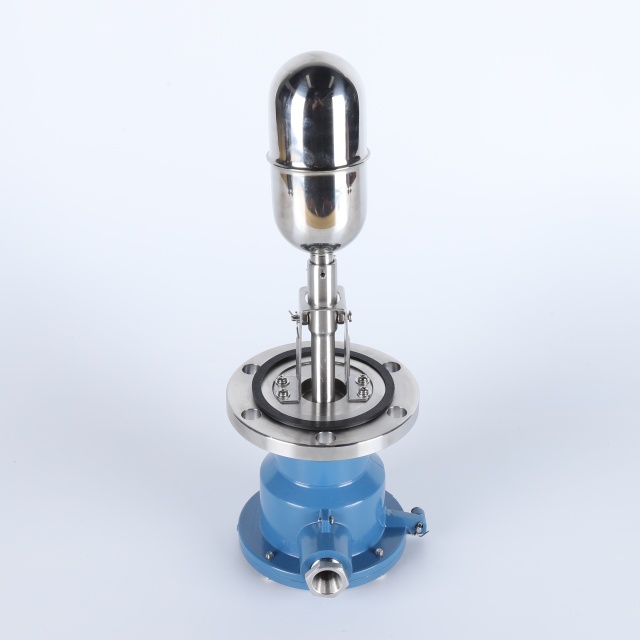

Marine Float Level Controller and UQK and Level Instrumentation

Name: Marine Float Level Controller and UQK and Level Instrumentation
Brand: JIEXI Fast Marine Service(Guangzhou) Co., Ltd
SKU: UQK-01-C、UQK-02-C、UQK-03-C
Availability: InStock
Rating: 5 (1 reviews)

No.UQK-01-C、UQK-02-C、UQK-03-C

Marine float level controller is mainly used for level control and alarm in various closed and open containers in Marine ships and other industrial sectors.

Model/Size/Weights

UQK-01-C Package Size：41*15*11cm weights：2.24kg

GET A QUOTE

Description

Specification

Product Name	Marine Float Level Controller
Voltage and Shock Capacity	10A 1/2HP 125 250VAC 0.6A 125VDC 0.3A 250VDC
Model	Working Pressure	Working Temperature	Installation
UQK-01-C	1 Mpa	150℃	Side-mounted basic model
UQK-02-C	1 Mpa	150℃	Side-mounted large switching type
UQK-03-C	1 Mpa	150℃	Top mounted

Model/Size/Weights
UQK-01-C
Package Size：41*15*11cm
weights：2.24kg

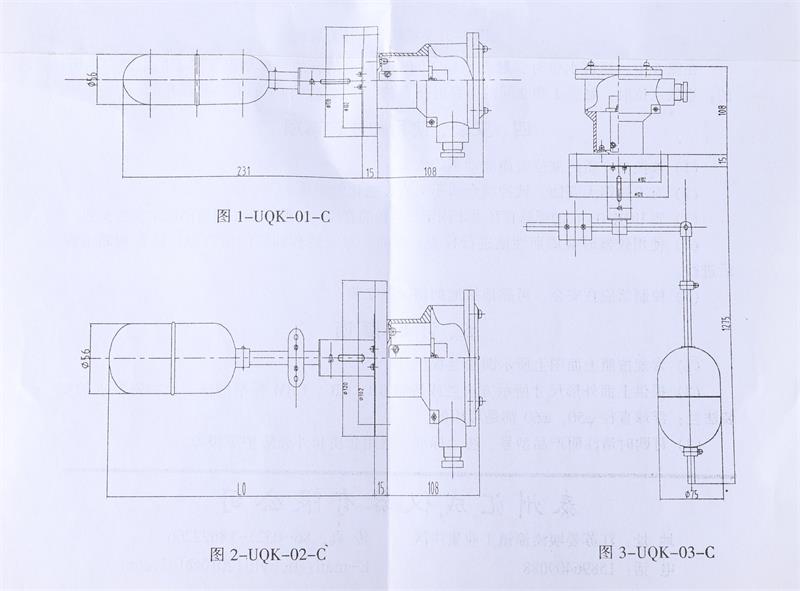

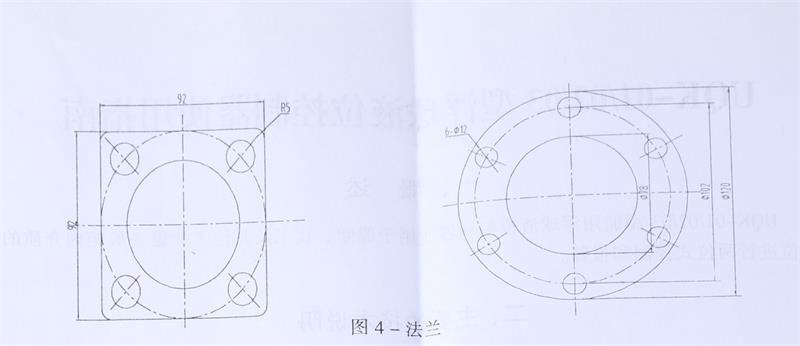

Dimension

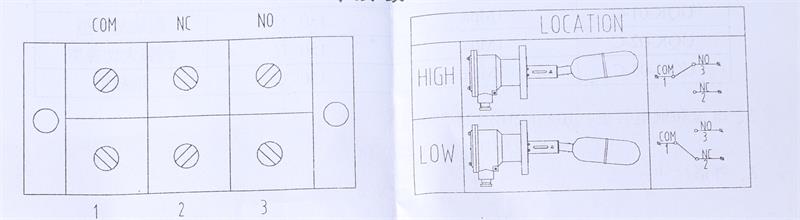

Wiring Diagram

Marine Float Level Controller
1. The controller adopts the magnetic principle, simple structure, reliable action.
2. It is mainly used for liquid level control and alarm in various closed and open containers in Marine ships and other industrial sectors.
3. The controller conforms to China Classification Society "GD01-2000" "Electrical and electronic Equipment Type Test Guide for Ships and offshore facilities".

Detailed Content
1、 Poor switching：
UQK-651 series 20 -- 70mm
UQK-652 series 10 -- 40mm
2、 repeat accuracy：
less than or equal to 20mm
Pressure: less than or equal to 1.0MPa
Specific gravity: 0.8 -- 1.2g/cm3
Temperature: less than or equal to 150℃
3、 Protection level：
UQK-651, UQK-652: -C
IP65: -CB
UQK-652: -C/2
4、contact capacity:
AC380/400V50——60Hz
Resistive load: 1A
Inductive load: 0.5A
UQK-651 UQK-652
5、explosion-proof products
Explosion-proof grade mark ExdIIBT3 ~ BT6
Explosion-proof GYB97340
