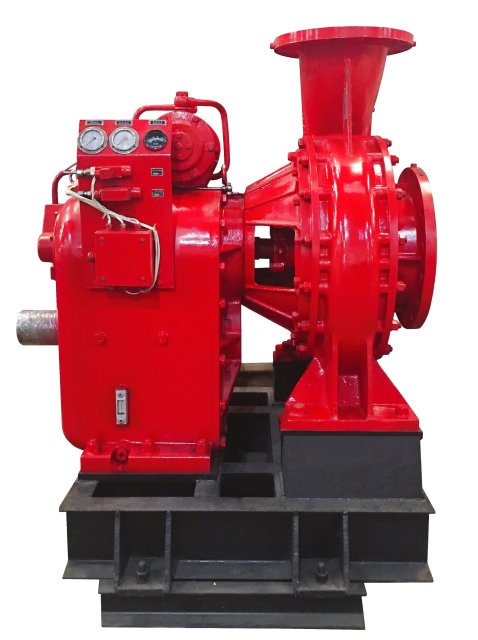

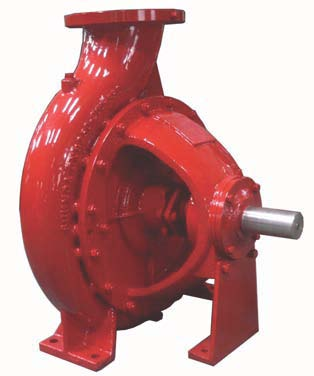

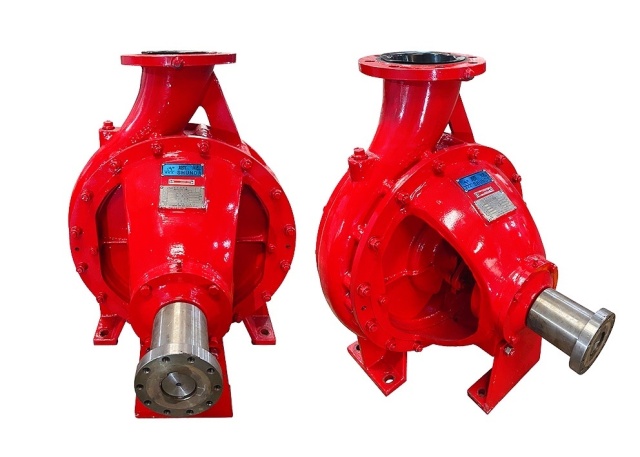

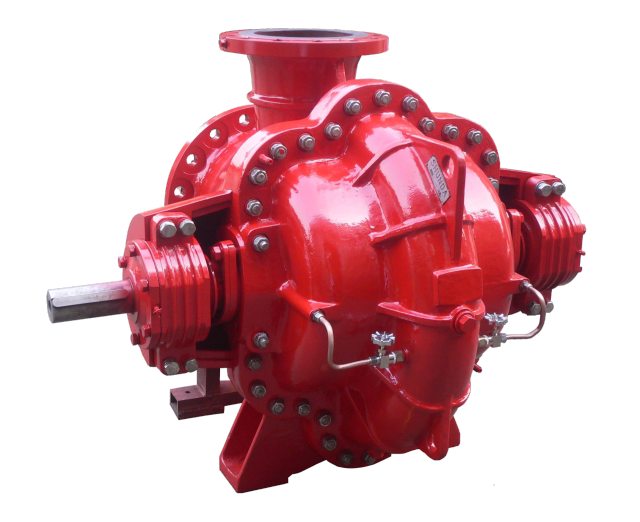

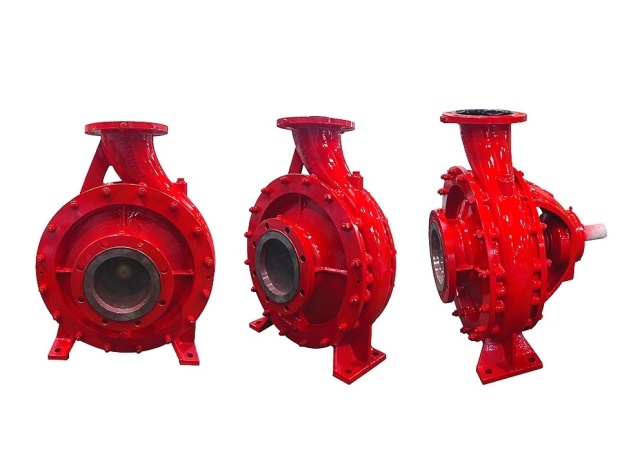

The CXB series marine external fire pump is horizontal structure, driven by marine diesel engine or marine motor. It is used for transporting seawater or fresh water on boats for external or internal fire fighting by fire monitor.
This series of pump is mainly driven by marine diesel engine. Those with smaller power may also be driven by motor.

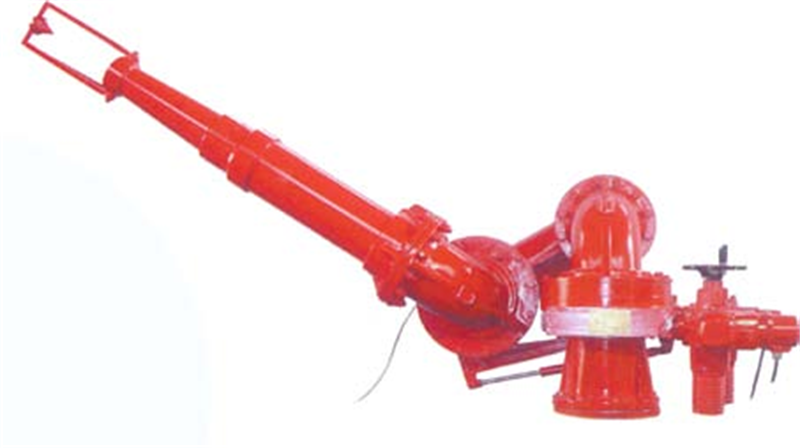

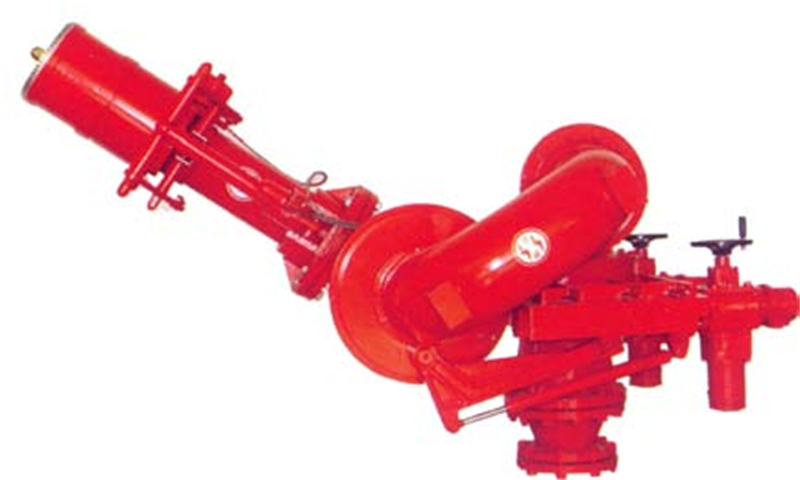

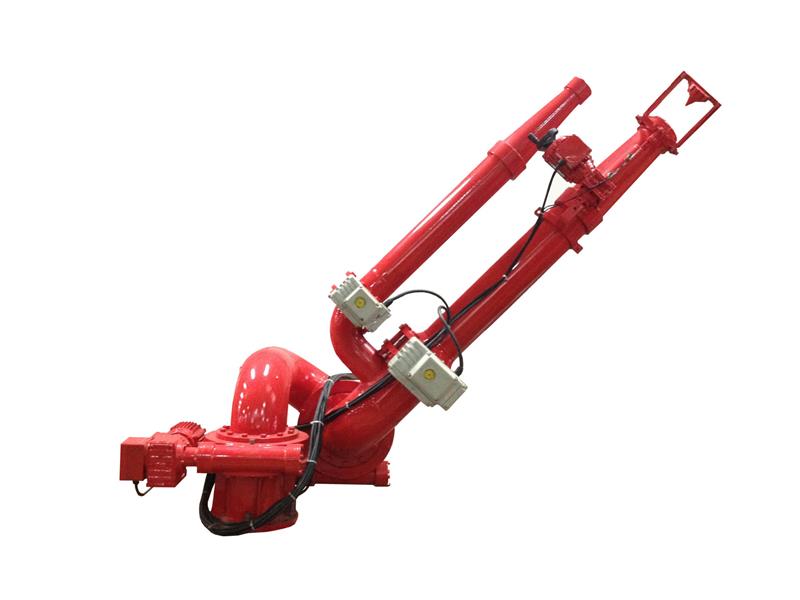

Viewing from the motor, there is two turning you can choices, but the crew thread in the shaft must be inverse.We can provide fire fighting cannon and control system bases to client’s request.
| Type | Capacity | Head | Speed | Shaft Power | Weight |
|
CXB200-150-370 |
300 m³/h | 160 m | 2950 r/min | 185 kw | 450 kg |
|
CXB200-150-370A |
270 m³/h | 145 m | 2950 r/min | 155 kw | 450 kg |
|
CXB200-150-350 |
300 m³/h | 130 m | 2950 r/min | 150 kw | 450 kg |
|
CXB200-150-350A |
270 m³/h | 120 m | 2950 r/min | 118 kw | 450 kg |
|
CXB200-150-530G |
300 m³/h | 140 m | 1800 r/min | 163 kw | 370 kg |
|
CXB200-150-530GA |
280 m³/h | 125 m | 1800 r/min | 138 kw | 370 kg |
|
CXB200-150-530GB |
260 m³/h | 110 m | 1800 r/min | 116 kw | 370 kg |
|
CXB250-200-530G |
750 m³/h | 130 m | 1800 r/min | 354 kw | 400 kg |
|
CXB250-200-530GA |
700 m³/h | 115 m | 1800 r/min | 300 kw | 400 kg |
|
CXB250-200-530GB |
650 m³/h | 102 m | 1800 r/min | 254 kw | 400 kg |
|
CXB250-200-530GC |
600 m³/h | 90 m | 1800 r/min | 216 kw | 400 kg |
|
CXB300-200-530G |
1000 m³/h | 140 m | 1800 r/min | 471 kw | 450 kg |
|
CXB300-200-680G |
750 m³/h | 160 m | 1500 r/min | 445 kw | 580 kg |
|
CXB350-250-600G |
1700 m³/h | 160 m | 1800 r/min | 915 kw | 580 kg |
|
CXB350-250-600GA |
1600 m³/h | 140 m | 1800 r/min | 777 kw | 580 kg |
|
CXB350-250-600GB |
1500 m³/h | 120 m | 1800 r/min | 654 kw | 580 kg |
|
CXB350-250-600GC |
1400 m³/h | 100 m | 1800 r/min | 545 kw | 580 kg |
|
CXB350-250-580 |
1300 m³/h | 170 m | 1800 r/min | 752 kw | 1500 kg |
|
CXB350-300-580A |
1250 m³/h | 140 m | 1800 r/min | 607 kw | 1500 kg |
|
CXB350-250-580G |
1500 m³/h | 160 m | 1800 r/min | 843 kw | 1230 kg |
|
CXB400-350-620 |
1750 m³/h | 180 m | 1800 r/min | 1086 kw | 1800 kg |
|
CXB500-400-740 |
4300 m³/h | 175 m | 1500 r/min | 2411 kw | 2800 kg |
|
CXB500-400-740A |
3800 m³/h | 160 m | 1500 r/min | 1948 kw | 2800 kg |

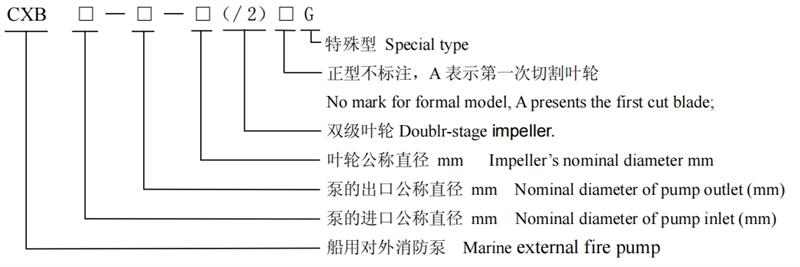

The Meaning of The Model：
The CXB series marine external fire pump is horizontal structure, driven by marine diesel
engine or marine motor. It is used for transporting seawater or fresh water on boats for
external or internal fire fighting by fire monitor.
This series of pump is mainly driven by marine diesel engine. Those with smaller power
may also be driven by motor.
Viewing from the motor, there is two turning you can choices, but the crew thread in the
shaft must be inverse. We can provide fire fighting cannon and control system bases to
client’s request.
