Product Name
|

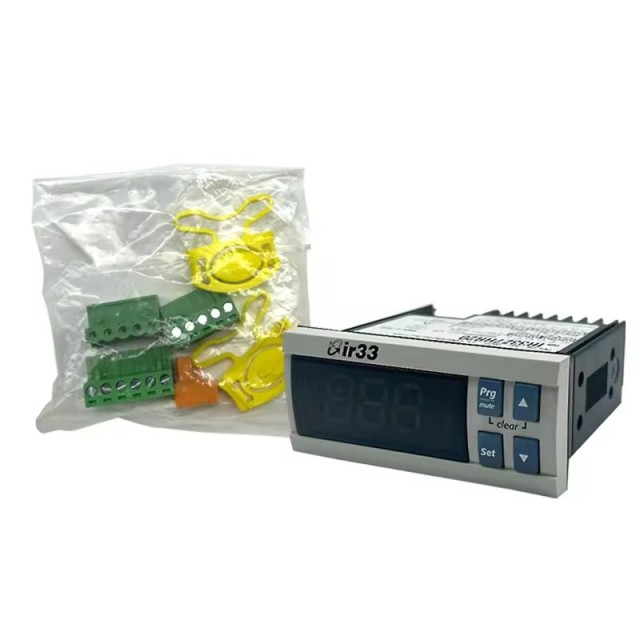

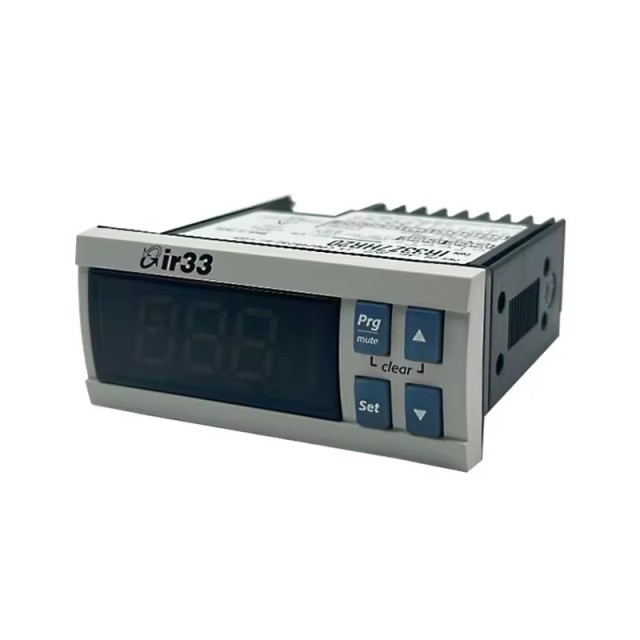

Temperature Controller
|
|
Material
|
Plastic
|
|
Model
|
IR33W7HR20
|
|

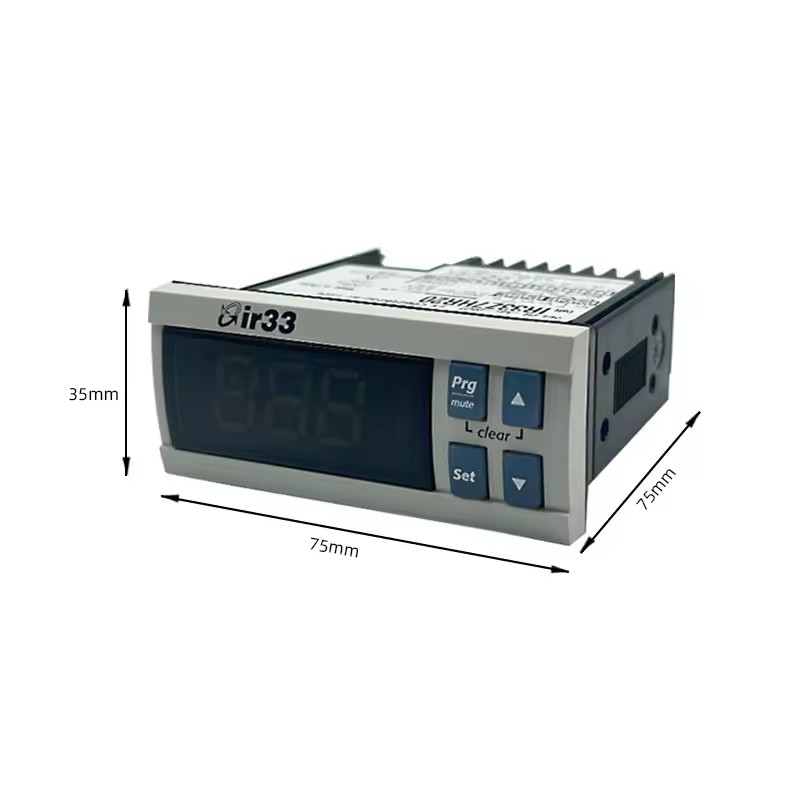

Dimension
|
34.4x76.2x79mm, Mounting depth: 70.5mm
|
|
Power Supply
|
115 to 230 Vac(-15%...+10%), 50/60 Hz
|
|
Power
|
6 VA, 50 mA max
|
|
Insulation guaranteed by the power supply
|
From the very low voltage parts: reinforced, 6 mm in air, 8 mm on surface, 3750 V insulation.
From the relay outputs: basic, 3 mm in air, 4 mm on surface, 1250 V insulation. |
|

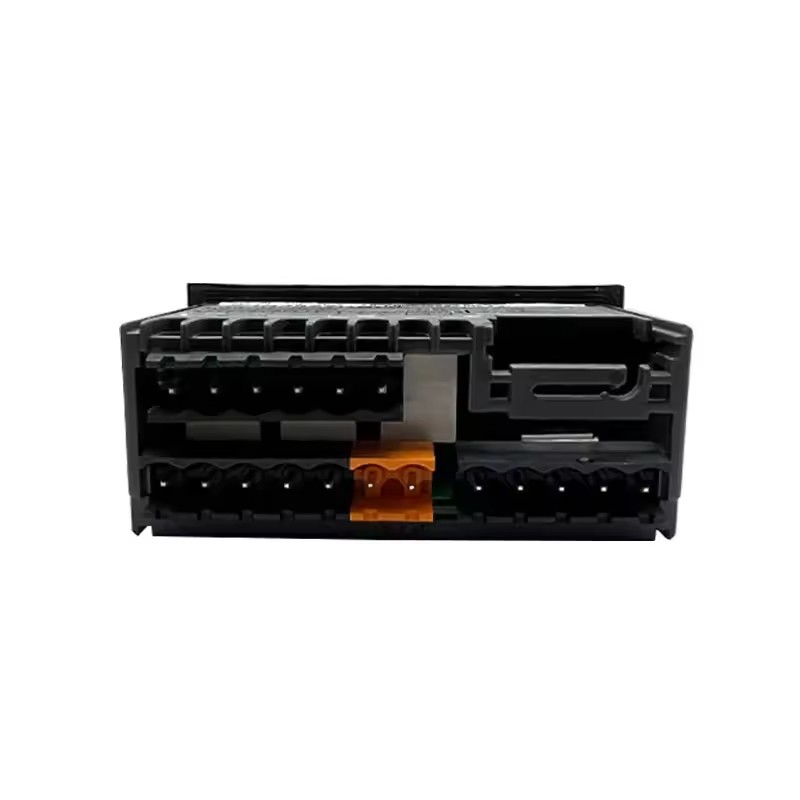

Connections
|
Plus-in for cables from 0.5 to 2.5mm², max current 12A
|
|
Display
|
3 digit, display from -99 to 999
|
|
Operating Temperature
|
-10 To 60°C
|
|
Storage Temperature
|
-20 To 70°C
|
|
Operating/Storage Humidity
|
<90% rH non-condensing
|
|
Index of Protection
|
IP65, with assembly on smooth and indeformable panel with gasket
|
|
Main characteristics
|
The infrared universal series controllers have been designed for the control of the main physical values (temperature,pressure,
humidity) on air-conditioning, refrigeration and heating units. |
